CVD Polycrystalline Diamond Logs | Custom Multi-Point Dresser Solutions

Polycrystalline CVD Logs | Diamond Multi-Point Dresser Applications

Technical Specifications:
Uniform wear characteristics, extended service life, and chipping resistance for high volume rough repairs.

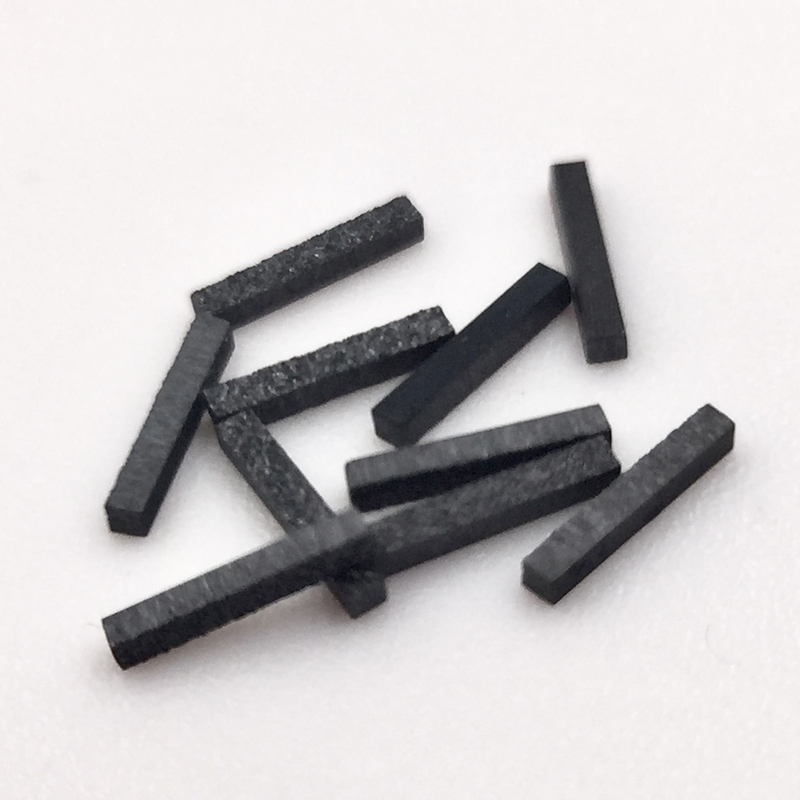

Engineered for high-performance bar dresser manufacturing, these CVD Polycrystalline logs deliver exceptional longevity and stability in demanding grinding wheel conditioning and precision machining operations. Primarily utilized in diamond bar dresser production, they are extensively applied in industrial grinding wheel dressing and precision manufacturing processes.

Performance Highlights:
• Excels in precision grinding and complex profile machining
• Enhances production efficiency with minimized downtime
• Guarantees stable long-term bulk supply

Material Properties:
Exhibits high hardness, superior wear resistance, exceptional strength, elevated elastic modulus, effective thermal conductivity, minimal friction coefficient, strong adhesion resistance, remarkable corrosion resistance and chemical stability - satisfying all precision cutting tool requirements.

Standard Dimensions:
3×0.6×0.6,3×0.8×0.8
3×1.0×1.0,3×1.2×1.2
4×0.4×0.4,4×0.6×0.6
4×0.8×0.8,4×1.0×1.0
4×1.2×1.2,4×1.5×1.5
5×0.6×0.6,5×0.8×0.8
5×1.0×1.0,5×1.2×1.2
6×0.6×0.6,6×0.8×0.8
6×1.0×1.0,6×1.2×1.2
Additional sizes available

Customization Options:
Width customization up to 7mm
Length customization up to 20mm
Available thicknesses: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.2mm, 1.5mm, 1.7mm, 2.0mm

Product Applications:
Diamond Multi-point Dressing Pens, Diamond Strip Dressing Pens, Diamond Flat Tip Dressing Pens, Pointed Tip Grinding Wheel Dressing Pens, Diamond Pen Plate Dressing Knives, Diamond Dressing Rollers

Note: As our advantageous product, stable large-volume long-term supply is available.

The logs are also available in other materials(CVD/MCD):
