Precision CVD Diamond for Industrial Tools / Semi-circular shape

Precision CVD Diamond for Industrial Tools / Semi-circular shape

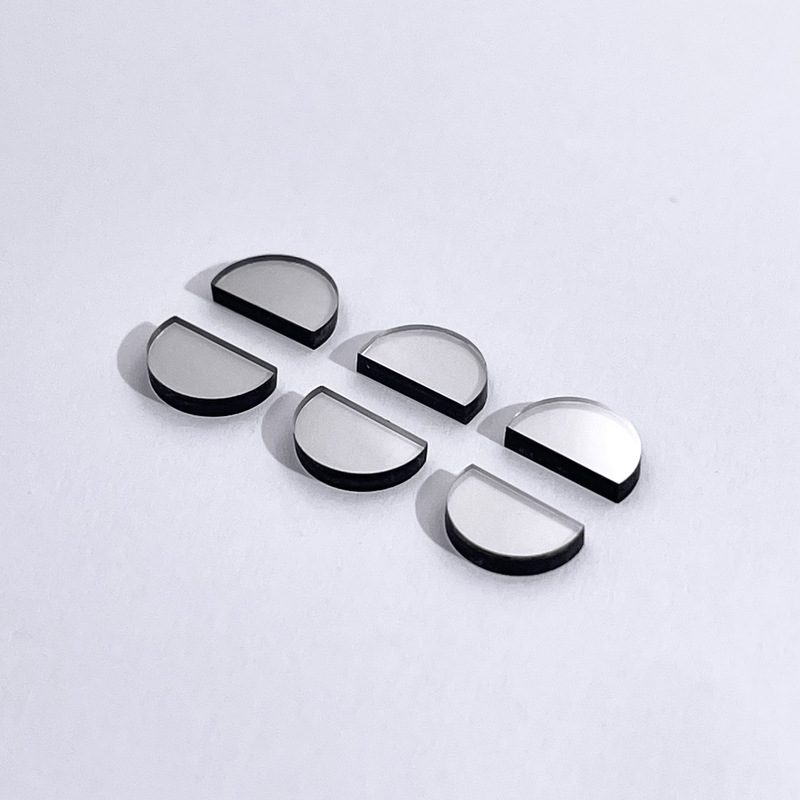

Semi-circular shape of mechanical-grade single crystal CVD diamond offer:
✓ Maximum hardness and wear resilience
✓ High strength/elastic modulus
✓ Optimal thermal transfer
✓ Chemical/corrosion immunity
✓ Low friction and anti-adhesion
Certified for precision cutting applications.

Application Scope:
• Diamond dressing systems
• Water jet nozzle components
• Wire drawing die inserts
• Cutting/milling tooling

Configurable Dimensions:

• Length capacity: ≤20mm

• Width capacity: ≤7mm

• Standard thicknesses: 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.2, 1.5, 1.7, 2.0mm

• Orientation/shape personalization

Technical Production:
Synthetic diamond (lab-grown/CVD/chemical vapor deposition diamond) is manufactured artificially. Two primary methods exist:

• HPHT: High-pressure (5 GPa) high-temperature (1500°C) press-based synthesis

• CVD: Low-pressure (<27 kPa) substrate deposition providing:
  *Large-area coverage
  *Material property control
  *Versatile substrate compatibility

Available size	2~20mm
Available thickness	0.2mm - 3mm
Lateral tolerance	+0.15,-0mm
Thickness tolerance	+0.1,-0.05mm
Face orientation	{100}> or {110}
Crystallographic Orientation(Miscut)	±3°
Surface finish	Polished,Ra<10nm
Edges	Laser Cut
Laser Kerf	<3°
